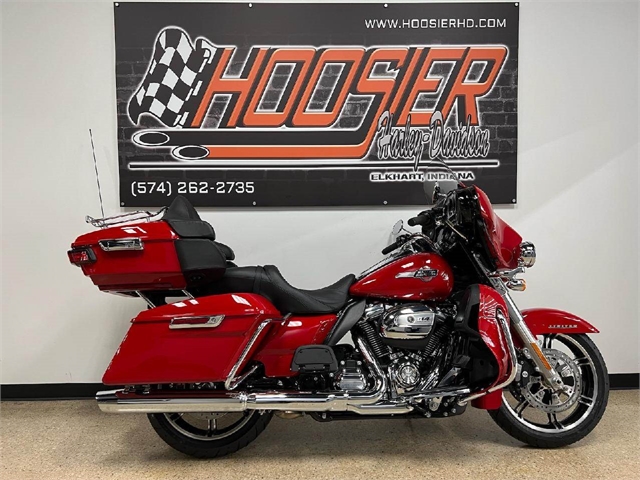

2023 Harley-Davidson Ultra Limited


685 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Harley-Davidson Electra Glide Ultra Limited . I'm in the area and you can reach me at or on my phone at .




  • Status:
    New
  • Vehicle:
    2023 Harley-Davidson Ultra Limited
  • VIN:
    1HD1KEF19PB608429
  • Model Number:
    FLHTK
  • Color:
    Redline Red
  • Location:
    Hoosier Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Brand Name:
    Boom!™ Box GTS
  • Number Of Speakers:
    4
  • Satellite:
    Yes

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • CAN Liters Per Kilometer (Combined):
    5.5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.5
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    1868
  • Displacement (ci):
    114
  • Engine Brand Name:
    Twin-Cooled™ Milwaukee-Eight™ 114
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.5
  • Stroke (mm):
    114.3
  • Torque (Ft Lbs):
    122
  • Torque (Nm):
    166
  • Torque RPM:
    3000
  • US Miles Per Gallon (Combined):
    43
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Body Material:
    Steel
  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Frame:
    Steel
  • Saddle Bag Guard:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Divider Material:
    Leather

GLASS

  • Folding:
    Yes
  • Height:
    High
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    29.1
  • Seat Height (mm):
    740
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Rear Rack Storage Material:
    Hard Vinyl
  • Rear Rack Storage Trim:
    Plain
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    399
  • Dry Weight (lbs):
    880
  • Engine Displacement to Weight (cc):
    2.12
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5.3
  • Ground Clearance (mm):
    135
  • GVWR (kgs):
    617
  • GVWR (lbs):
    1360
  • Height (in):
    56.7
  • Height (mm):
    1440
  • Length (ft):
    8.52
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.3
  • Length (in):
    102.3
  • Length (mm):
    2600
  • Payload Capacity (kgs):
    201
  • Payload Capacity (lbs):
    443
  • Storage Capacity (cuft):
    4.7
  • Storage Capacity (gal):
    30.2
  • Storage Capacity (l):
    133.1
  • Wet Weight (kg):
    416
  • Wet Weight (lbs):
    917
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625
  • Width (in):
    37.8
  • Width (mm):
    960

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Harley Davidson Series 130/70 R18 63H
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    18
  • Rear Tire (Full Spec):
    Dunlop® Harley Davidson Series 180/55 R18 80H
  • Rear Tire Aspect Ratio:
    55
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    18
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
